Products > LINK

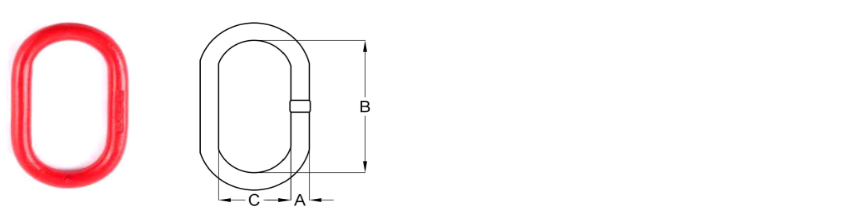

| Grade 80 Alloy, Painted Red |
| According To Specifications ASTM A952 |
| Size |
Approx. Weight |
Working |
Dimensions(inch) |
|||
| inch |
Ibs/pcs |
Ibs |
A |
B |
C |
|
| 1/2" |
0.84 |
4,100 |
0.52 |
5.00 |
2.25 |
|
| 5/8" |
1.60 |
5,500 |
0.63 |
6.00 |
3.00 |
|
| 3/4" |
2.20 |
8,600 |
0.76 |
6.00 |
3.20 |
|
| 1" |
5.00 |
20,300 |
1.10 |
8.00 |
4.30 |
|
| 1-1/4" |
10.5 |
29,300 |
1.33 |
9.00 |
5.00 |
|
| 1-1/2" |
16.5 |
39,900 |
1.61 |
11.00 |
6.00 |
|
| 1-3/4" |
28.2 |
52,100 |
1.75 |
12.00 |
6.75 |
|
| 2" |
37.0 |
81,400 |
2.00 |
14.00 |
7.50 |
|
| 2-1/2" |
69 |
122,750 |
2.50 |
17.00 |
8.50 |
|
| 3" |
136 |
190,000 |
3.00 |
20.00 |
10.50 |
|
| 3-1/2" |
200 |
232,500 |
3.50 |
22.00 |
12.00 |
|

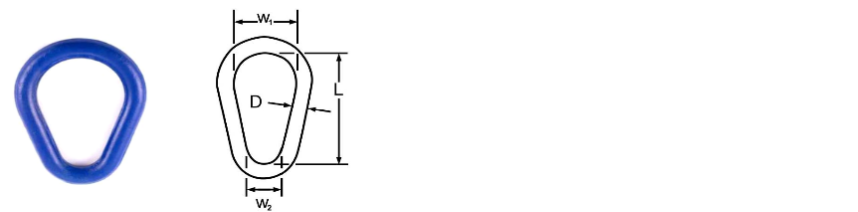

| PEAR SHAPED LINKS |
| Grade 80 Alloy, Hot Galvanized & Self Colored(Painted) |
| According To Federal Specification RR-C-271G |
| Size |
Approx. Weight |
Working |
Dimensions(inch) |
|||
| in |
Ibs/100pcs |
Ibs |
L |
W1 |
W2 |
|
| 1/2" |
79 |
3,600 |
3.00 |
2.00 |
1.00 |
|
| 5/8" |
140 |
6,250 |
3.75 |
2.50 |
1.25 |
|
| 3/4" |
210 |
9,000 |
4.75 |
2.75 |
1.38 |
|
| 7/8" |
275 |
11,400 |
5.25 |
3.50 |
1.75 |
|
| 1" |
460 |
16,000 |
6.00 |
3.75 |
1.88 |
|
| 1-1/4" |
900 |
25,650 |
8.00 |
4.40 |
2.50 |
|
| 1-1/2" |
1,530 |
34,900 |
10.50 |
5.25 |
3.00 |
|
| COUPLING LINKS |
| Grade 80, Forged Alloy Steel,Heat Treated |
| According To Specifications ASTM A952/A952M-02(2016) |
| Size |
Approx. Weight |
Working Load Limit |
Dimensions(inch) |
||||
| in |
Ibs/100pcs |
lbs |
A |
B |
C |
D |
E |
| 9/32" |
25 |
3,500 |
0.33 |
1.93 |
0.79 |
0.79 |
0.73 |
| 5/16" |
55 |
4,500 |
0.37 |
2.75 |
1.02 |
0.98 |
0.89 |
| 3/8" |
75 |
7,100 |
0.47 |
3.03 |
1.26 |
1.26 |
0.98 |
| 1/2" |
150 |
12,000 |
0.61 |
3.34 |
1.38 |
1.26 |
1.18 |
| 5/8" |
255 |
18,100 |
0.73 |
4.05 |
1.69 |
1.53 |
1.42 |
| 3/4" |
415 |
28,300 |
0.90 |
4.56 |
1.89 |
1.85 |
1.73 |
| 7/8" |
575 |
34,200 |
1.04 |
5.24 |
2.00 |
2.16 |
1.93 |
| 1" |
860 |
52,100 |
1.24 |
5.83 |
2.36 |
2.60 |
2.36 |
| RAPID QUICK LINKS |
| Forged Stainless Steel Or ElectrIc Galvanized |
| Size |
Approx. Weight |
Working Load Limit |
Dimensions(inch) |
||||
| inch |
lbs/100pcs |
lbs |
A |
B |
C |
D |
|
| 1/8" |
2 |
400 |
0.19 |
1.45 |
0.39 |
1.19 |
|
| 3/16" |
5 |
660 |
0.25 |
2.06 |
0.50 |
1.69 |
|
| 1/4" |
8 |
880 |
0.31 |
2.38 |
0.56 |
1.88 |
|
| 5/16" |
18 |
1760 |
0.38 |
2.94 |
0.69 |
2.31 |
|
| 3/8" |
24 |
2,200 |
0.44 |
3.19 |
0.69 |
2.44 |
|
| 1/2" |
53 |
3,300 |
0.56 |
4.25 |
0.94 |
3.25 |
|

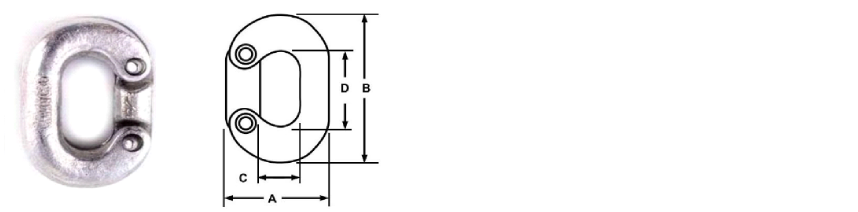

| CHAIN CONNECTING LINKS |
| Forged Steel- Quenched and Tempered |
| According to Federal Spcifications RRC-271G,Type 2 |
| Size |
Approx. Weight |
Working Load Limit |
Dimensions(inch) |
||||
| inch |
lbs/100pcs |
lbs |
A |
B |
C |
D |
|
| 3/16" |
3 |
800 |
0.81 |
1.19 |
0.31 |
0.69 |
|
| 1/4" |
6 |
1,325 |
1.00 |
1.50 |
0.44 |
0.84 |
|
| 5/16" |
10 |
1,950 |
1.19 |
1.69 |
0.47 |
0.94 |
|
| 3/8" |
17 |
2,750 |
1.44 |
2.09 |
0.56 |
1.19 |
|
| 1/2" |
36 |
4,750 |
1.75 |
2.63 |
0.66 |
1.44 |
|
| TRANSPORT TWIN CLEVIS LINKS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Grade 70,Drop Forged,Quenched&Tempered
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
